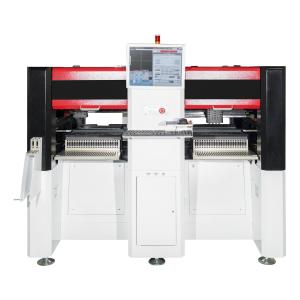

27000pcs/H Automatic Pick And Place Machine Soldering For Assembly Process

Name: 27000pcsH Automatic Pick And Place Machine Soldering For Assembly Process
Brand: HWGC
Price: 24500 USD

Brand Name : HWGC

Model Number : HW-DSQ800-120F

Place of Origin : CHINA

MOQ : 1

Price : 24500-24800$

Payment Terms : T/T

Delivery Time : 8 work day

Vision off : 27000pcs/h

Warranty : 1 year

Number of head : 8

Number of feeder : 102

Software : English

Number of camera : 10

Contact Now

machines offer advanced features specifically designed to optimize y assembly process.

8groups of independent mounting heads -8groups of mounting heads are distributed with different nozzles, which are suitable for the mounting requirements of products with more specifications.

1) 8 groups of mounting heads can realize the double arms and four heads pick simultaneously,pick up the material at same time, The picking efficiency is improved greatly.

2) The mounting head can rise and fall independently, rotate from 0 to 360 degrees, and mount up to 20 mm components.

3) The z-axis can rise and fall independently according to the thickness of the components,For the resistance and capacitance components, the mounting head can realize the fly visual identification, High components can be mounted at reduced speed.

4) It can meet the requirements of different sizes of components, different specifications and different packages, achieve diversity, one-time placement.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Recognition Devices	mark camera x1,fast recognition camera x4. high-precision camera x1
Maximum Height of Applicable Components	≤7mm
Recognition Methods	simultaneous recognition and picking with eight heads
PCB Convey Mode	three-stage entry automatic connection from left to right, automatic PCB positioning
Mark Positioning	manual/automatic
Programming Method	automatic programming after manually importing files of PCB coordinates
Control System	HuaweiGuochuang 2021 control system
Motor	Panasonic AC Servo Motor MINAS A6 series
Driver	Panasonic high-speed DSP driver
Air Supply Requirements	oil water filter,> 60L dust filter and air pressure stabilizer etc
Vision Display	17-inch industrial control display

Productivity

The HuaWei GuoChuang SMT Machine is designed to achieve high productivity for electronic manufacturers. It can achieve a placement speed of up to 30000CPH, minimizing downtime and maximizing production. Additionally, the machine’s high accuracy and precision allow for consistent and reliable results during the assembly process.

FAQ

Q: How is the training?

A: After buying our machines, your engineers can go to our company or it is so easy to operate. We have English user manual and guide video to teach you how to use the machine. The user manual will come with the machine together.

Q:Is it hard to use these machines?

A: No, not hard at all For our previous clients, at most 2 days is enough to learn to operate the machines.

Q:Does your machines have quality certificate?

A: All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own paten.
